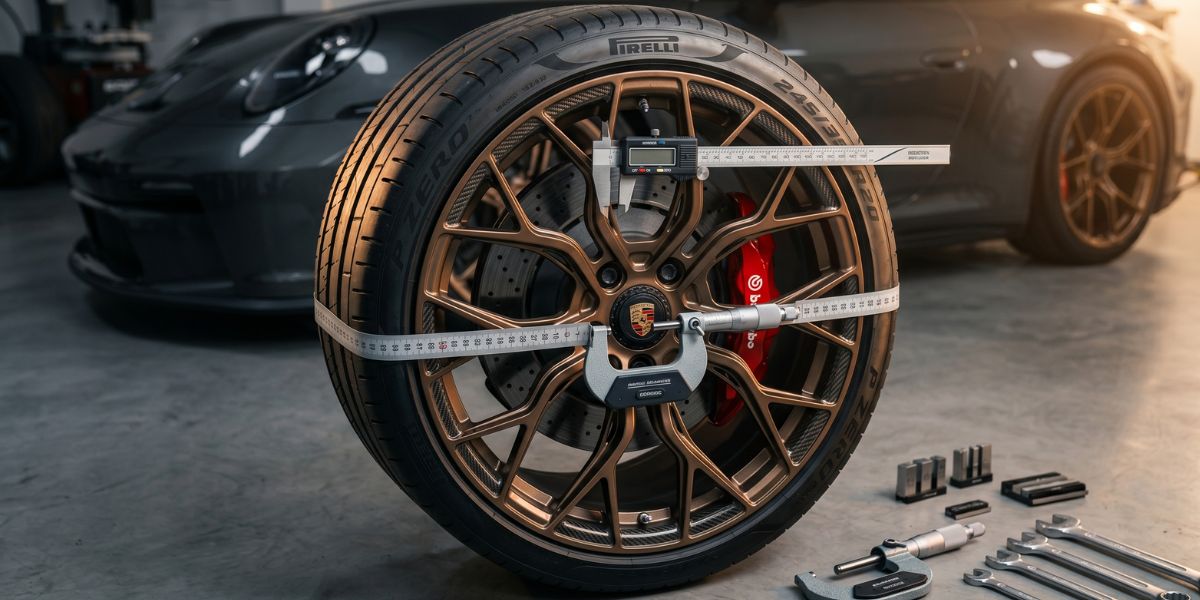

Measuring car rims correctly is essential for ensuring safety, performance, and proper vehicle fitment. Even small mistakes in how do you measure a car rim measurements can lead to issues such as poor handling, tire damage, vibration, or unsafe driving conditions. That’s why understanding the correct way to measure your rims is important for every car owner, whether you are a beginner or an enthusiast.
Proper rim measurements directly affect how well your tires fit and perform on the road. When rims are accurately measured, tires sit correctly on the wheel, improving grip, stability, and overall driving comfort. This also helps maintain balanced performance, especially during high-speed driving or on rough roads. Incorrect measurements, on the other hand, can cause uneven tire wear and reduce fuel efficiency.
There are several common reasons why people need to measure car rims. One of the most popular reasons is upgrading wheels to enhance the vehicle’s look or performance. Others may need measurements when replacing damaged rims or purchasing new tires to ensure compatibility. Car enthusiasts also measure rims when customizing their vehicle’s appearance to achieve a specific style or stance. Overall, accurate rim measurement is the foundation for safe, efficient, and visually appealing wheel upgrades.
Why Measuring Car Rims Matters
Measuring car rims accurately is one of the most important steps when upgrading, replacing, or customizing wheels. It is not just about fitting a new set of rims onto your vehicle; it directly impacts safety, performance, and long-term durability. One of the biggest benefits of correct rim measurement is that it prevents you from buying incompatible wheels. Many drivers make the mistake of choosing rims solely for appearance, but without proper sizing, the wheels may not fit your vehicle at all.
Proper measurement also ensures correct tire installation. Tires must sit perfectly on the rim to maintain balance and grip. If the rim size is incorrect, the tire may not seal properly, leading to air leaks, uneven wear, or even blowouts in how do you measure a car rim extreme cases. This is why professional mechanics always double-check rim specifications before mounting tires.
Another key reason is driving safety. Correctly measured rims help maintain vehicle stability, especially at high speeds or during sharp turns. When rims are properly fitted, they support the tire structure evenly, reducing the risk of vibration or loss of control.
Accurate rim measurements also help maintain smooth vehicle handling. When wheels are properly sized, steering response improves, braking becomes more stable, and overall driving comfort increases. Additionally, correct measurements help avoid clearance issues with brakes and suspension components, ensuring that the wheel does not rub against internal parts of the vehicle.
Tools You Need to Measure a Car Rim
Before measuring a car rim, ensure you have the right tools to achieve accuracy. The most commonly used tool is a tape measure, which helps in measuring diameter and width. A ruler can also be used for smaller or more precise measurements.
For more accurate results, a caliper is highly recommended. It allows you to measure rim width and center bore with greater precision how to clean rims on a car than basic tools. Another essential tool is a bolt pattern gauge, which helps determine the exact spacing of lug holes.
Finally, keeping a pen and paper is useful for recording all measurements clearly. This helps avoid confusion when comparing rim sizes or purchasing new wheels.
Understanding Car Rim Measurements
Understanding rim measurements is essential before making any wheel-related decision. Each part of the rim plays a specific role in fitment and performance.
Rim Diameter
Rim diameter is the distance measured from one bead seat to the opposite bead seat across the wheel. This measurement is usually expressed in inches. Common rim sizes include 15”, 16”, 17”, 18”, and 20”. The diameter must match the tire size for proper installation. A mismatch can lead to unsafe driving conditions or improper tire seating.
Rim Width
Rim width refers to the distance between the inner flanges of the wheel. This measurement determines how wide the tire will sit on the rim. Rim width plays a major role in tire compatibility because different tire sizes are designed for specific width ranges. A correct width ensures better grip, stability, and balanced performance.
Bolt Pattern
The bolt pattern is the arrangement of lug holes on the rim. It includes the number of lug holes and the diameter of the imaginary circle they form, known as the Bolt Circle Diameter (BCD). Common examples include 5×114.3 and 4×100. Matching the correct bolt pattern is critical because even a small mismatch will prevent the wheel from fitting onto the hub.
Offset
Offset refers to the position of the wheel’s mounting surface relative to its centerline. There are three types: positive, negative, and zero offset. Positive offset pushes the wheel inward toward the vehicle, while negative offset how do you measure a car rim pushes it outward. Zero offset means the mounting surface is exactly centered. Offset affects how the wheels sit within the wheel arch and influences handling, stability, and suspension clearance.
Center Bore
The center bore is the hole in the wheel’s center that fits over the vehicle’s hub. It is crucial for proper wheel alignment and balance. If the can a bent car rim be fixed center bore is too large or too small, it can cause vibration or improper fitting. Wheels can be either hub-centric, where the hub supports the wheel, or lug-centric, where the lug nuts carry the load. Hub-centric wheels are generally preferred for better stability and smoother driving performance.
Step-by-Step Guide on How to Measure a Car Rim
Measuring a car rim correctly is a detailed process that ensures your wheels fit perfectly, perform safely, and match your vehicle’s specifications. Whether you are upgrading your rims, replacing damaged ones, or customizing your car’s look, following a proper step-by-step method is essential. Each measurement plays a unique role in fitment, and missing even one detail can lead to compatibility issues.
Step 1 – Remove the Tire (Optional but Recommended)
Although you can take some measurements with the tire still mounted, removing the tire is highly recommended for accuracy. When the tire is off, you can clearly see the bead seats, inner edges, and mounting surfaces of the rim. This allows you to take precise measurements without interference from rubber edges or sidewalls.
Removing the tire also helps you access hidden markings and ensures that tools like calipers or tape measures sit properly against the metal surface. This step reduces the risk of incorrect readings and makes the entire process more reliable.
Step 2 – Measure Rim Diameter
Rim diameter is one of the most important measurements. It is taken from one bead seat directly across to the opposite bead seat, not from outer edge to outer edge. The bead seat is where the tire actually sits, making this the correct reference point.
Common mistakes include measuring the outer lip or guessing the size visually. This often leads to incorrect sizing. Typical rim diameters include 15”, 16”, 17”, 18”, and 20”. Always ensure the measurement is straight across the center for accuracy.
Step 3 – Measure Rim Width
Rim width is measured from the inner flange (bead seat) on one side to the inner flange on the opposite side. This gives you the true usable width of the rim where the tire mounts.
Width is crucial because it determines what tire sizes will fit properly. A wider rim can support wider tires, improving grip and stability, while a narrower rim is better suited for smaller tire sizes. Using a tape measure or caliper ensures precise results.
Step 4 – Measure Bolt Pattern
The bolt pattern refers to the number of lug holes and the diameter of the circle they form. For example, a 5×114.3 bolt pattern means five lug holes arranged in a 114.3mm circle.
For even-numbered lug patterns (like 4 or 6 lugs), you measure directly across opposite holes. For odd-numbered patterns (like 5 lugs), you must measure from the center of one lug hole to the outer edge of another. Accuracy is critical because even a small mismatch will prevent proper wheel installation.
Step 5 – Determine Rim Offset
Offset refers to the wheelis position relative to the hub mounting surface. It is measured in millimeters and can be positive, negative, or zero.
To calculate offset accurately, you measure the distance between the wheel’s centerline and its mounting surface. Positive offset means the mounting surface is toward the outside of the wheel, pushing it inward. Negative offset pushes the wheel outward, giving a more aggressive stance. Zero offset means the mounting surface is perfectly centered.
Offset plays a major role in clearance, handling, and suspension performance.
Step 6 – Measure Center Bore
The center bore is the hole in the middle of the rim that fits over the vehicle’s hub. Measuring it ensures proper hub alignment and reduces vibration during driving.
A caliper is the best tool for this measurement. If the center bore is too large, hub-centric rings may be needed. If it is too small, the wheel will not fit at all. Proper center bore sizing ensures smooth and stable driving performance.
How to Read Rim Size Markings
Rim size markings are usually stamped on the inside of the wheel. For example, a marking like “17x8J” provides important information.
- “17” represents the rim diameter in inches
- “8” represents the rim width in inches
- “J” refers to the rim flange type
These markings are essential for quickly identifying wheel specifications without measuring manually. Manufacturers often place these stamps on the inner barrel or near the spoke area.
Common Mistakes When Measuring Car Rims
Many people make simple but costly mistakes when measuring rims. One common error is measuring the outer edge rather than the bead seat, resulting in incorrect diameter readings. Another mistake is ignoring offset, which can affect how the wheel sits in the wheel arch.
Some also confuse tire size with rim size, which are completely different measurements. Misreading bolt patterns is another frequent issue, especially with 5-lug wheels. These mistakes can result in incompatible wheels and unsafe driving conditions.
OEM vs Aftermarket Rim Measurements
OEM (Original Equipment Manufacturer) rims are designed specifically for your vehicle with factory specifications. Aftermarket rims, however, offer more flexibility in size, style, and offset.
Aftermarket wheels may require custom fitment considerations such as spacers or hub rings. While OEM rims prioritize safety and compatibility, aftermarket rims focus more on performance and aesthetics. Choosing between them depends on your driving needs and customization goals.
Can You Measure Rims Without Removing Tires?
Yes, it is possible to measure rims without removing the tires, but there are limitations. While diameter and some width estimates can be taken externally, accuracy is reduced because the tire blocks direct access to the rim surface.
The main advantage is convenience, but the downside is reduced precision. For best results, removing the tire is recommended, especially for bolt pattern, offset, and center bore measurements.
Tips for Buying New Rims After Measuring
Once you have accurate measurements, always verify your vehicle manufacturer’s specifications before purchasing new rims. Online fitment tools can help confirm compatibility.
Make sure to consider tire compatibility, as not all tires fit every rim width. Always check the load rating to ensure the rims can safely support your vehicle’s weight. Finally, match your driving needs—whether for performance, comfort, or style—before making a final decision.
Benefits of Proper Rim Measurement
Accurate rim measurement offers several important benefits. It improves ride quality by ensuring proper tire seating and balance. It also enhances performance by optimizing grip and handling.
Fuel efficiency can improve when wheels are correctly sized, as rolling resistance is reduced. Safety is significantly increased because properly fitted rims reduce the risk of tire failure. Additionally, correct measurements save money by preventing incorrect purchases and unnecessary replacements.
Conclusion
Measuring a car rim is a detailed but essential process that involves checking diameter, width, bolt pattern, offset, and center bore. Each measurement plays a critical role in ensuring proper fitment and performance.
Precision is key, as even small errors can lead to compatibility issues or safety risks. Whether you are a beginner or an automotive enthusiast, understanding how to measure rims correctly will help you make smarter, safer, and more cost-effective decisions when upgrading or replacing your wheels.
FAQs
Can I measure my car rim without removing the tire?
Yes, you can measure some parts of a rim without removing the tire, such as the approximate diameter or visible markings. However, accuracy may be limited because the tire blocks access to key measurement points like bead seats and inner flanges. For the most precise results—especially for width, offset, and center bore—it is always better to remove the tire.
What is the most important rim measurement?
The two most important rim measurements are diameter and bolt pattern. The diameter ensures the rim matches the correct tire size, while the bolt pattern determines whether the wheel will physically fit onto your vehicle’s hub. Without these two matching correctly, the wheel cannot be safely installed.
Are rim sizes always measured in inches?
Yes, most passenger vehicle rim sizes are measured in inches. For example, a rim might be labeled as 16”, 17”, or 18”. This refers to the wheel’s diameter where the tire sits. However, some specifications like bolt pattern and offset are measured in millimeters.
How do I know my bolt pattern?
To determine your bolt pattern, first count the number of lug holes on your wheel. Then measure the distance between the centers of the lug holes (or use a bolt pattern gauge). For even-numbered patterns like 4 or 6 lugs, measure straight across. For 5-lug wheels, measure from the center of one lug to the outer edge of another to find the bolt circle diameter.
What happens if I choose the wrong rim size?
Choosing the wrong rim size can cause several serious problems. It may lead to poor fitment, meaning the wheel won’t mount correctly. It can also create safety issues such as tire blowouts, vibrations, or loss of control. Incorrect sizing often affects vehicle handling, braking performance, and overall driving comfort.
Where can I find my rim size?
You can usually find your rim size printed directly on the wheel itself, often on the inner side or spoke area. It may also be listed on a sticker inside the driver’s door frame (door placard). In some cases, the owner’s manual or manufacturer’s specifications will also provide detailed rim size information.
